VICOR電源開關輸出模塊EnMods結合FARM和HAM的三相變頻器 AC 最前端模式

發布了時光：2020-10-20 15:17:27 挑選：6919

VICOR電源模塊ENMOD系統是一種交流前端解決方案，它將無源功率因數校正和自動調整結合在一起。VICOR電原方案ENMOD系統結合濾波和保持電容器，完全滿足EN61000-3-2諧波電流、EN55022B電平輻射、EN61000-4-5浪涌抗干擾、EN61000-4-11線路干擾和EN61000-3浪涌電流的要求。與有源PFC解決方案不同，VICOR電源開關板塊EnMods不產生EMI，這大大簡化和降低了系統噪聲和濾波要求。

VICOR電模塊電源EnMods的特性和優質

115/230 VAC輸進的手動變動

諧波電流值衰減具有EN61000-3-2

EMI濾波器完全符合EN55022，B級

瞬態干涉減弱完全符合EN 61000-4-5

西安市立維創展科學是VICOR開關電源引擎的代理商廠商商，大部分具備DC-DC、AC-DC主機電壓控制器，防護、非防護主機電壓控制器轉化成器等，立維創展堅持創新驅動為投資者保證高品質、高水平量、軟件報價房屋公證的微波射頻元元件軟件,喜愛服務咨詢.

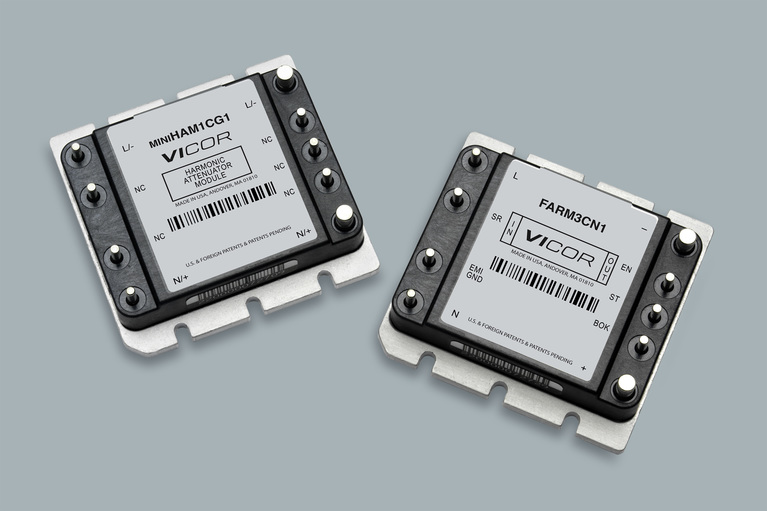

VICOR電源模塊EnMods整合FARM和HAM的單相 AC 前端系統

Part Number	貨品高等級	引腳的形式	符合RoHS	柔性板
EN1C11	–20°C to +100°C	Short	No	Slotted
EN1C12	–20°C to +100°C	Short	No	Threaded
EN1C13	–20°C to +100°C	Short	No	Through hole
EN1C21	–20°C to +100°C	Long	No	Slotted
EN1C22	–20°C to +100°C	Long	No	Threaded
EN1C23	–20°C to +100°C	Long	No	Through hole
EN1CS1	–20°C to +100°C	Short ModuMate	No	Slotted
EN1CN1	–20°C to +100°C	Long ModuMate	No	Slotted
EN1CN2	–20°C to +100°C	Long ModuMate	No	Threaded
EN1CN3	–20°C to +100°C	Long ModuMate	No	Through hole
EN1T11	–40°C to +100°C	Short	No	Slotted
EN1T21	–40°C to +100°C	Long	No	Slotted
EN1T22	–40°C to +100°C	Long	No	Threaded
EN1T23	–40°C to +100°C	Long	No	Through hole
EN1TS1	–40°C to +100°C	Short ModuMate	No	Slotted
EN1TN1	–40°C to +100°C	Long ModuMate	No	Slotted
EN1TN2	–40°C to +100°C	Long ModuMate	No	Threaded
EN1H21	–40°C to +100°C	Long	No	Threaded
EN1HN1	–40°C to +100°C	Long ModuMate	No	Slotted
EN1HN3	–40°C to +100°C	Long ModuMate	No	Through hole
EN1CF2	–20°C to +100°C	Short RoHS	Yes	Threaded
EN1CG1	–20°C to +100°C	Long RoHS	Yes	Slotted
EN1CG2	–20°C to +100°C	Long RoHS	Yes	Threaded
EN1CG3	–20°C to +100°C	Long RoHS	Yes	Through hole
EN1TG1	–40°C to +100°C	Long RoHS	Yes	Slotted
EN1HG1	–40°C to +100°C	Long RoHS	Yes	Slotted
