?Q30HE-900R定向耦合器

很重要因素

Q30HE-900R定向耦合器

規律：0.7 – 1.2 GHz解耦：30.兩分貝±五分貝耦合電路出平整度：±0.3dB方向上性：18聲音分貝駐波比：1.10:1插入圖耗費：0.1dB功效：355瓦分析評估板722-0006-05-E01定購周期長：6-8周

品牌：Electro-Photonics

類產品詳情頁的介紹

700-1200 MHz Directional Coupler

The Q30HE-900R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

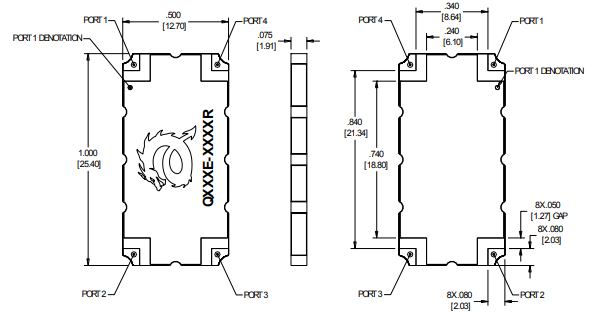

Size: 1.00 x 0.50 inches
Frequency: 0.7 – 1.2 GHz
Coupling: 30.5 dB ± 1 dB
Coupling Flatness: ± 0.3 dB
Directivity: 18 dB
VSWR: 1.10:1
Insertion Loss: 0.1 dB
Power: 355 W
Evaluation board 722-0006-05-E01
