Q20HE-1090R定向耦合器

主要技術指標

Q20HE-1090R定向委培合體器平率：0.96 – 1.22 GHz耦合電路：20dB±1dB耦合電路比較平整度：±0.5dB導向性：20聲音分貝駐波比：1.2:1添加圖片自然損耗：0.15dB工作效率：400瓦評估方法板722-0006-05-E01進貨期：6-8周

品牌：Electro-Photonics

企業產品詳情簡介簡介

960-1220 MHz Directional Coupler

The Q20HE-1090R is a broadband, bi-directional coupler with high directivity and high power handling. It is suitable for LTE mobile broadband, UHF television, GSM, and more…

Specifications

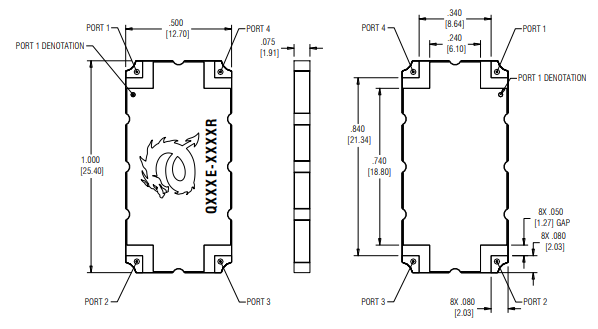

Size: 1.00 x 0.50 inches
Frequency: 0.96 – 1.22 GHz
Coupling: 20 dB ± 1 dB
Coupling Flatness: ± 0.5 dB
Directivity: 20 dB
VSWR: 1.2:1
Insertion Loss: 0.15 dB
Power: 400 W
Evaluation board 722-0006-05-E01
