?Q20HGA-1090R定向耦合器
?Q20HGA-1090R定向耦合器
為重要產品參數

Q20HGA-1090R定向耦合器

頻帶寬度：960 – 1220 MHz交叉耦合：20聲貝±0.75聲貝朝向性：超小 20 dB駐波比：1.15:1復制到損耗率：0.15dB耗油率：200瓦分析評估板722-0006-03-E01購貨頻次：6-8周

品牌：Electro-Photonics

新產品具體詳情價紹

960-1220 MHz Directional Coupler

The Q20HGA-1090R is a broadband, bi-directional coupler with high power handling. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

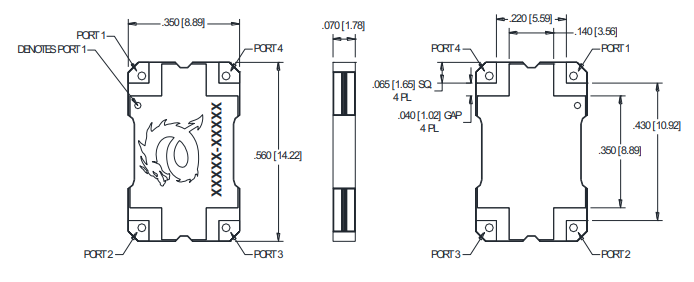

  • Size: .560 X .350 inches
  • Frequency: 960 – 1220 MHz
  • Coupling: 20 dB ± 0.75 dB
  • Directivity: 20 dB min
  • VSWR: 1.15:1
  • Insertion Loss: 0.15 dB
  • Power: 200 W
  • Evaluation board 722-0006-03-E01
